Quadraverb GT

Quadraverb GT
Released 1990 -
GTxxxxxxx

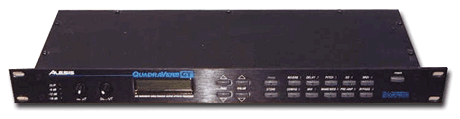

The Alesis Quadraverb GT is basically a Quadraverb+ with an analog preamp section tacked on for guitar effects.

This unit allows you to have 11 simultaneous effects (6 analog + 5 digital). Its preamp section is geared towards guitarists, but it is great for adding the extra "grit" to keyboards or drums.

Unlike its later siblings, the GT only has eight different effects routing combinations. While this may sound like a limitation, in fact you will be hard pressed to not find a combination that works for the effect you are trying to achieve.

The default effects are great, but are primarily aimed at guitarists with lots of overdrive and distortion. It is a good thing that any of the presets can be overwritten for those who are using other instruments. Every effect has several editable parameters that allow you to fine tune the sound. Eight parameters can be controlled in real-time via midi.

Reverbs

Plate, room, chamber, hall, reverse (all of which can be gated) Pitch effects: chorus, flange, detune, leslie, phaser Delays: Ping pong, mono, stereo, multitap EQ's: 3-band parametric, 5-band graphic, 11-band graphic Additional: LFO Panning, tremolo, ring modulation, tunable resonators, sampling



Selection of Quadraverb GT demos and players who use an Alesis Quadraverb GT



SOUNDS EFTP


QUADRAVERB GT ( See more in Manual )

Physical
Dimensions: 19" x 1.75" x 6" (single rack space)
Weight: 4.2 lbs.

Effects

  Preamp
Reverb
Delay
Pitch Change
Equalization
Panning and Tremolo

Ring Modulation
Tunable Resonators
Sampling
Mixer
Modulation
Bi-Timbral



Configurations
#1 Preamp > EQ > Tremolo/Panning > Pitch > Delay > Reverb 21
#2 Preamp > Lezlie > Delay > Reverb
#4 Preamp > 5 Band EQ > Tremolo/Panning >
#5 Preamp > 3 Band EQ > Reverb
#6 Preamp > Ring Modulator > Delay > Reverb
#7 Preamp > Resonators > Delay > Reverb
#8 Preamp > Sampling


  QV GT Service Manual Notice Program Chart
